GH0221, लाइटिंग कनेक्टर, पुश इन कनेक्टर, वायरिंग के निर्माण के लिए लीवर कनेक्टर

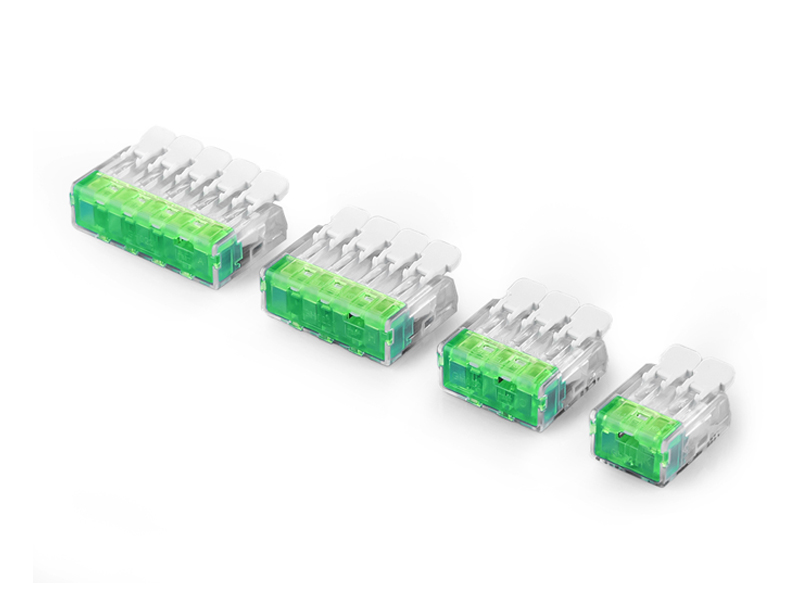

Product Description:GH0221A, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 30A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 14-16mm        3.6    Cross section: 10~20AWG4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 5 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

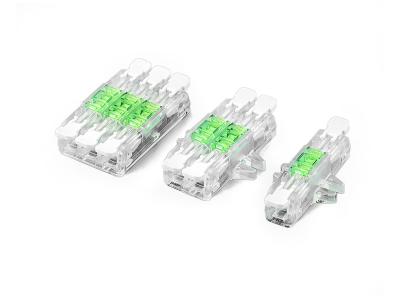

Product Description:GH0222, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 4, 6 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 4, 6 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

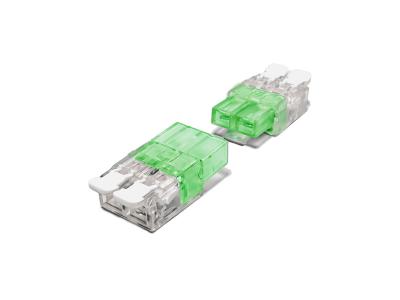

Product Description:GH0223, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

उत्पाद वर्णन: J0011 क्लैंप वायर कनेक्टर, मेटल कनेक्टर, AWG24, कॉपर एलईडी बल्ब लाइट कनेक्टर, एलईडी लाइट कनेक्टर; संपत्ति ब्यौरा: 1. सामग्री: कॉपर मिश्र धातु 2. चढ़ाना: टिन 80u "मिनट सोल्डर टेल ar . पर 3. विद्युत प्रदर्शन: 3.1 वोल्टेज रेटेड: 275V (एसी / डीसी) 3.2 वर्तमान रेटेड: 1ए 3.3 इन्सुलेशन प्रतिरोध: 100MΩ मिनट 3.4 ढांकता हुआ प्रतिरोध वोल्टेज: 500 वी एसी आर.एम.एस / 1 एम 3.5 संपर्क प्रतिरोध: 60mΩ मैक्स। (प्रारंभिक) 100Ω मैक्स। (जीवन परीक्षण के बाद) 4. RoHS आज्ञाकारी 5. पर्यावरण विशेषता 5.1 भंडारण तापमान सीमा: -10℃~+50℃ आधा वर्ष 5.2 ऑपरेटिंग तापमान रेंज: -40℃~+105℃ विशेषताएं और लाभ: लो प्रोफाइल ऑन-बोर्ड शैडोइंग को कम करता है उपलब्ध मुद्रित सर्किट बोर्ड (पीसीबी), मोटाई: 1.0-1.2 मिमी एसएमटी सोल्डरिंग प्रक्रिया में पूर्ण एकीकरण के लिए टेप-एंड-रील पैकेजिंग में डिलीवरी स्वचालित पिक-एंड-प्लेस असेंबली के माध्यम से महत्वपूर्ण बचत की संभावना आवेदन: एलईडी लाइट बल्ब एलईडी पट्टी प्रकाश कनेक्टर मुद्रित सर्किट बोर्ड (पीसीबी) प्रमाणपत्र: जीएचजीएम में गुणवत्ता नियंत्रण की पहली प्राथमिकता है। प्रबंधन प्रणाली: आईएटीएफ 16949:2106, आईएसओ 9001, आईएसओ 14001, जीबी/टी29490 उत्पादन गुणवत्ता नियंत्रण: उल, वीडीई, पहुंच, आरओएचएस, आईईसी, सीक्यूसी आविष्कार और पेटेंट: अमेरिका, जर्मनी, जापान, चीन पैकिंग और शिपिंग: हम यह सुनिश्चित करने के लिए सबसे अच्छी और सुरक्षित पैकेजिंग सामग्री चुनते हैं कि डिलीवरी के दौरान आपके ऑर्डर क्षतिग्रस्त नहीं होंगे। विभिन्न पैकिंग विधि विभिन्न उत्पादों के अधीन है, जैसे टेप & असली, पीई बैग, ट्यूब, ट्रे। ये व्यापार शर्तें स्वीकार्य हैं, EXW, FOB, CFR, CIF, आदि।

Product Description:GH0806b plug-in spring wiring connector, Pin spacing 5.0 mm, Intuitive tool-free operation, adopts a plug-in spring wiring structure and a retractable operating handle, PCB terminal block, Push-in CAGE CLAMP®▪Single-solid, thin multi-strand wires and wires with cold-pressed ends can be inserted directly.▪Multiple wiring units can be kept open at the same time, making the connection of multi-core cables easier.▪The original design of wire inlet insertion into wire rib strips greatly reduces the possibility of failure of wires being easily dragged due to external forces or other factors, and the shell units are disengaged.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Intuitive tool-free operationAdopts a plug-in spring wiring structure and a retractable operating handleAvailable in 2-24 pole configurationsCompact terminal strips without push-buttonsPluggable terminal blockTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

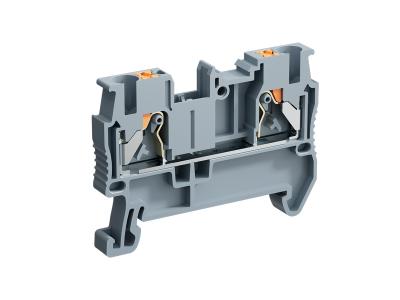

Product Description:GHPT025 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：48.6*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT10 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：67.7*49.5*10.2mm2.   Wiring capacity：0.5-16mm²(solid wire) / 0.5-10mm²(Stranded wire), 20-6AWG3.   Voltage/Current：IEC: 1000V/57A, UL:600V/60A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

उत्पाद वर्णन: GH5059, LED लाइट कनेक्टर, पिच 2.8mm, 1-3 पिन, साइड एंट्री कनेक्टर, 2059 रिप्लेसमेंट संपत्ति ब्यौरा: 1. सामग्री: 1.1 आवास: एलसीपी UL94 V-0 1.2 टर्मिनल: कॉपर मिश्र धातु 2. चढ़ाना: टर्मिनल: मैट-इन 3. विद्युत प्रदर्शन: 3.1 वोल्टेज रेटेड: 300V (एसी / डीसी) 3.2 वर्तमान रेटेड: 3ए 3.3 इन्सुलेशन प्रतिरोध: 100MΩ मिनट 3.4 ढांकता हुआ प्रतिरोध वोल्टेज: 500 वी एसी आर.एम.एस / 1 एम 3.5 पट्टी लंबाई: 4.5 ~ 5 मिमी 3.6 क्रॉस सेक्शन: 24AWG(Sol&Str) 4. पर्यावरण विशेषता 4.1 भंडारण तापमान सीमा: -10℃~+50℃ आधा वर्ष 4.2 ऑपरेटिंग तापमान रेंज: -40℃~+105℃ 5. RoHS आज्ञाकारी विशेषताएं और लाभ: लो प्रोफाइल ऑन-बोर्ड शैडोइंग को कम करता है विभिन्न लंबाई के टर्मिनल स्ट्रिप्स को बिना किसी डंडे को खोए माउंट किया जा सकता है जिससे कम संख्या में वेरिएंट और कम उत्पादन लागत की अनुमति मिलती है 1–3 पोल विन्यास में उपलब्ध एसएमटी सोल्डरिंग प्रक्रिया में पूर्ण एकीकरण के लिए टेप-एंड-रील पैकेजिंग में डिलीवरी स्वचालित पिक-एंड-प्लेस असेंबली के माध्यम से महत्वपूर्ण बचत की संभावना आवेदन: एलईडी लाइट बल्ब एलईडी पट्टी प्रकाश कनेक्टर मुद्रित सर्किट बोर्ड (पीसीबी) प्रमाणपत्र: जीएचजीएम में गुणवत्ता नियंत्रण की पहली प्राथमिकता है। प्रबंधन प्रणाली: आईएटीएफ 16949:2106, आईएसओ 9001, आईएसओ 14001, जीबी/टी29490 उत्पादन गुणवत्ता नियंत्रण: उल, वीडीई, पहुंच, आरओएचएस, आईईसी, सीक्यूसी आविष्कार और पेटेंट: अमेरिका, जर्मनी, जापान, चीन पैकिंग और शिपिंग: हम यह सुनिश्चित करने के लिए सबसे अच्छी और सुरक्षित पैकेजिंग सामग्री चुनते हैं कि डिलीवरी के दौरान आपके ऑर्डर क्षतिग्रस्त नहीं होंगे। विभिन्न पैकिंग विधि विभिन्न उत्पादों के अधीन है, जैसे टेप & असली, पीई बैग, ट्यूब, ट्रे। ये व्यापार शर्तें स्वीकार्य हैं, EXW, FOB, CFR, CIF, आदि।
